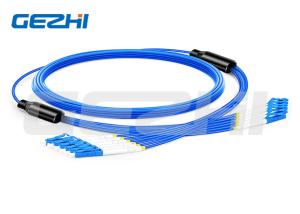

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

Name: 6 Fibers OS2 Single Mode LCSCFCST Armored Indoor 30mm MultiFiber Breakout Cable
Brand: Gezhi or OEM
Price: 1 USD

China 6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable factory

Brand Name : Gezhi or OEM

Model Number : Multi-Fiber Breakout Cable

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1 pieces

Price : USD >= 1 pieces $0.89

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 Piece/Pieces per Day

Delivery Time : 7 Days

Packaging Details : inner box,Carton

Cable Jacket : PVC

Fiber Count : 6 Fibers

Wavelength : 1310/1550nm

Fiber Mode : OS2 9/125μm

Polish Type : UPC/APC

Connector Type : LC/SC/ST/FC

Number of Conductors : 6

Contact Now

Product description

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with slight dust, oil, gas, moisture, or even damage-causing rodents and pests.

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

Specification

Connector Type	LC/SC/ST/FC	Polish Type	UPC/APC
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Fiber Count	6 Fibers	Cable Jacket	PVC
Fiber Grade	G.657.A1	Minimum Bend Radius	30D (Dynamic/Static)
Insertion Loss	≤0.3dB	Return Loss	UPC≥50dB, APC≥60dB
Attenuation at 1310nm	0.36 dB/km	Attenuation at 1550nm	0.22 dB/km
Trunk Diameter	4.5mm	Breakout Diameter	3.0mm
Polarity	A (Tx) to B (Rx)	Jacket Color	Blue
Armor Layer	Stainless Steel Tube	Tensile Loads	200/400N (Long/Short Term)
Operating Temperature	-25~70°C	Storage Temperature	-25~70°C

Product line

6 Fibers OS2 Single Mode LC/SC/FC/ST Armored Indoor 3.0mm Multi-Fiber Breakout Cable

FAQ

Q1:Can I have a sample order? What is your MOQ ?

A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
