FC/APC 1x16 Fiber Optic PLC Splitter Stainless Steel Tube Type

Name: FCAPC 1x16 Fiber Optic PLC Splitter Stainless Steel Tube Type
Brand: GEZHI or OEM
Price: 1 USD

China FC/APC 1x16 Fiber Optic PLC Splitter Stainless Steel Tube Type factory

Brand Name : GEZHI or OEM

Model Number : 1x64 PLC Splitter

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000Channel per month

Delivery Time : 5-8 work days

Packaging Details : Paper box

Mode : single mode

Type : steel tube type

Cable Diameter : 0.9mm

Cable length : customised

Wavelength : 1260-1650nm

Application : FTTX Systems

Contact Now

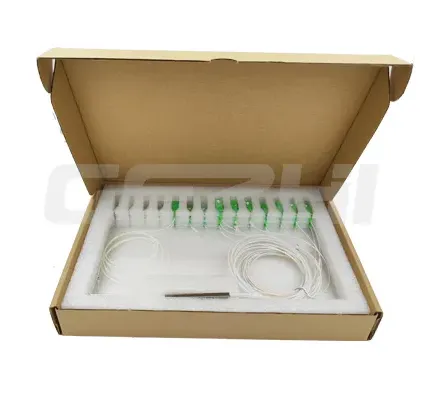

Product Packaging

FC/APC 1x16 Fiber Optic PLC Splitter Stainless Steel Tube Type

Finished Item

Inner Package

Carton

Product Overview

PLC 1x16 fc/apc stainless steel tube type fiber optic plc splitter

1x64 PLC Splitter

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity,

and is widely used in PON networks to realize optical signal power splitting.

Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Odering Information

XXX

Port

Configrition

Module type

Cable type

Fiber length

Input connector

Output

connector

G=Gezhi

P=PLC

102=1x2

104=1x4

108=1x8

116=1x16

132=1x32

164=1x64

204=2x4

208=2x8

216=2x16

232=2x32

264=2x64

BF=Bare Fiber

BL=Blockless

MO=Module

LG=LGX Box

RM=Rack Mount

CB=Cassette Box

XX=Customized

00=none

09=900um

Loose tube

20=2.0mm

30=3.0mm

05=0.5m

10=1.0m

15=1.5m

30=3.0m

40=4.0m

50=5.0m

......

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

0=none

1=LC/UPC

2=LC/APC

3=SC/UPC

4=SC/APC

5=FC/UPC

6=FC/APC

7=LC/APC

X=Customized

Compliance

♦Telcordia GR-1209-CORE-2001

♦ Telcordia GR-1221-CORE-1999

♦ RoHS

Features

Low Insertion loss

Low PDL Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability
