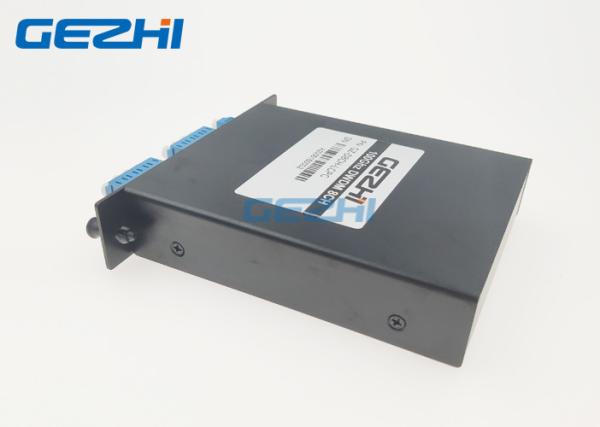

Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber
GEZHI’ Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber is a low insertion loss, high density passive optical module which based on the thin film coating technology with C21 to C36 wavelength and a express port for future devolopment and fiber extend. The Optical Passive DWDM Equipment 1x16 Mux Demux one Fiber offers an high channel isolation WDM solution for data centers and Metro access applications. Its consist by one Standlone DWDM Muxltiplexer and a Standlone DWDM demultiplexer.
| Features | Applications |
- High stability and reliability
- High channel
- Wide pass band
- Epoxy-Free Optical Path
- Telcordia GR-1221 Compliant
| - Access / Enterprise Networks
- Long Haul Networks
- CATV Fiber Optic Links
- Wavlength Routing
- Channel Add/Drop
- Dense WDM Systems
- Metro Networks
|
Specification
| Parameter | Unit | 1x16CH Passive Dense WDM |
| Channel Number | -- | 16 Channel |
| Operation Wavelength | nm | C21~C36 |
| Channel Central Wavelength | nm | ITU-T Grid @DWDM |
| Channel Passband | nm | <5.0 or add Skip <3.2dB |
| Insertion Loss @PB | dB | <2.5 |
| Isolation @Adjacent Channel | dB | >30 |
| Isolation @Non-adjacent Channel | dB | >40 |
| Isolation @Reflect Channel | dB | >15 |
| Passband Ripple | dB | <0.5 |
| Polarization Dependent Loss | dB | <0.15 |
| Polarization Mode Dispersion | ps | <0.1 |
| Directivity & Return Loss | dB | Directivity: >50 Return Loss:>45 |
| Power Handling | mW | <500 |
| Connector | -- | LC/UPC |
| Fiber Type | -- | SMF-28e or Customized |
| Operating Temperature | ℃ | -20 ~ +70 |
| Storage Temperature | ℃ | -40 ~ +85 |
| Package Dimension | mm | 19" 1U Rack Mount |
1x16 Optical Passive DWDM Equipment Filter Cascading
Rack Mount type 1x18 CH DWDM Mux equipment

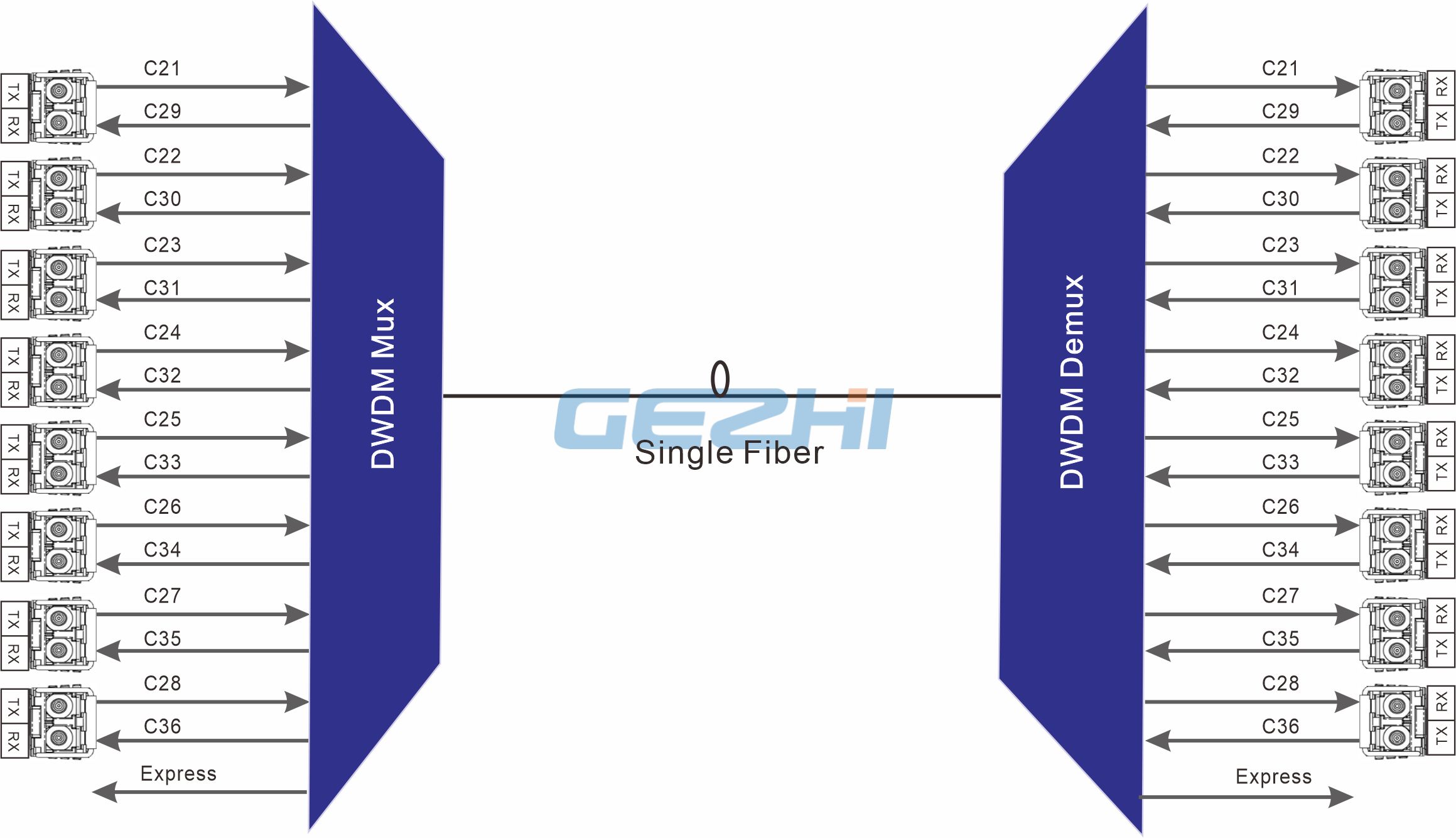

Standlone 1x16 DWDM Mux Demux splitter equipment transmission over Single Fiber
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer Of CWDM Mux Demux. We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
