LC/APC 1310nm 2x2F Blocked Mechanical Optical Switches

Name: LCAPC 1310nm 2x2F Blocked Mechanical Optical Switches
Brand: GEZHI or OEM
Price: 1 USD

China LC/APC 1310nm 2x2F Blocked Mechanical Optical Switches factory

Brand Name : GEZHI or OEM

Model Number : GZ-FSW-2x2F

Certification : CE RoHS,ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 50000pcs per month

Delivery Time : 2-7 work days

Packaging Details : 2pcs in a foam with plastic Box

Product Name : 2x2 Full Optical Switches

Control Type : Blocked

Wavelength : 1310/1550nm

Voltage : 5V or 3V

Connector : FC/UPC or customized

Feature : High Reliability

Contact Now

Blocked Dual 1x1 Optical Switches for Channel Blocking

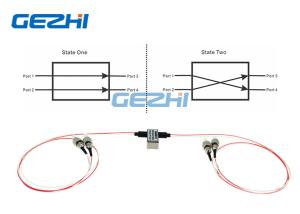

The Dual 1x1 Optical Switches of GEZHI Photonics Co.,Ltd also means 2x2 Full mechanical Fiber optical switch, its with Through and Cross optical state. Its used in Configuration add/drop solution, Channel Blocking, wth high reliability and low optical distortions .

Features

Fail-Safe Latching

Unmatched Low Cost
Low Optical Distortions

Epoxy-Free Optical Path

High Reliability

Applications

Channel Blocking

Configurable Add/Drop

System Monitoring

Instrumentation

Specification

Parameters	Specifications	Unit
Operating Wavelength	1260~1620(SM)	nm
Insertion Loss	≤1.0	dB
Wavelength Dependent Loss	≤0.25	dB
Polarization Dependent Loss	≤0.05	dB
Temperature Dependent Loss	≤0.20	dB
Return Loss	SM≥50	dB
Cross Talk	SM≥55	dB
Switch Time	≤8	ms
Repeatability	≤±0.02	dB
Durability	≥10⁷	times
Operating Voltage	3 or 5	V
Switch Type	Non-Latching/Latching
Operating Temperature	－20~＋70	℃
Storage Temperature	－40~＋85	℃
Optical Power	≤500	mW
Dimension	27.0L×12.5W×8.4H	mm

Pins

Type	Optical Route	Electric Drive				State Sensor
Full 2×2	Optical Route	Pin 1	Pin 5	Pin 6	Pin 10	Pin 2-3	Pin 3-4	Pin 7-8	Pin 8-9
Latching	P1-P4,P2-P3	--	--	GND	V＋	Close	Open	Open	Close
Latching	P1-P3,P2-P4	V＋	GND	--	--	Open	Close	Close	Open
Non-latching	P1-P4,P2-P3	--	--	--	--	Close	Open	Open	Close
Non-latching	P1-P3,P2-P4	V＋	--	--	GND	Open	Close	Close	Open

Order Information

GZ-FSW-2×2F

Mode

Wavelength

Voltage Type

Control Model

Fiber Type

Fiber Diameter

Fiber Length

Connector

S=SM
M=MM

85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others

3=3V
5=5V

L=Latching
N=Non- Latching

5=50/125
6=62.5/125
9=9/125
X=Others

25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others

1=1m
2=1.5m
X=Others

0=None
FP=FC/PC
FA=FC/APC
SP=SC/PC
SA=SC/APC
LP=LC/PC
LA=LC/APC

X=Others

Optical Route

Mechanical Drawing

Product Tags:

1x1 Blocked Mechanical Optical Switches

1310nm Blocked Mechanical Optical Switches

LC/APC Channel Blocking Optical Switches
