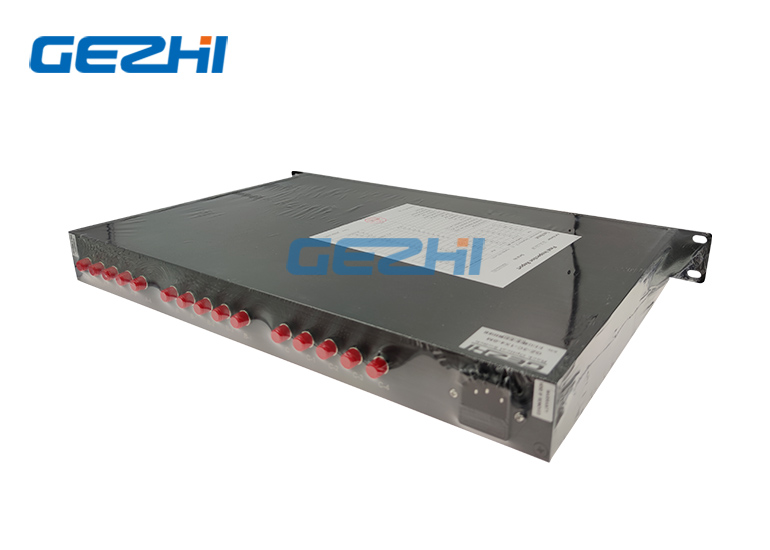

Triple Channel 500mW 1650nm 1x4 Fiber Optical Switch

  • 1
  • 2

Brand Name : GEZHI or OEM

Model Number : FSW-3C-1X4-SM

Certification : CE RoHS ISO9001

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per month

Delivery Time : 2-7 work days

Packaging Details : 2pcs in a foam with plastic Box

Product Name : 3C-1x4 Optical Switch

Channel : 3C-1x4

Wavelength : 1260~1650nm

Size : 19" 1U Rackmount

Adaptor : FC/UPC

Application : Wavelength switch of testing system

Contact Now

Triple channel 1x4 Fiber Optical Switch

GEZHI Photonics Co.,Ltd 's three channel 1x4 Fiber optical switches are available for single-mode fiber test applications. The excellent repeatability, compact format and flexible control interfacing support high-performance setups. These instruments are used for routing of optical signals for testing devices like tranceivers, amplifiers, and passive components. This three channel 1x4 Optical switches optimize the investment in test equipment by improving repeatability and throughput and supporting parallel measurements of multiport and multiple devices.

Features

Low insertion loss, Fast switching

RS232 Control and RJ45 Ethernet Remote Management
High Reliability, High Stability

Applications

OXC, OLP, ROADM
Wavelength switch of testing system
Channel switch of optic sensor system

Specification

Parameters Unit Indicators
Unit Type FSW-3C-1x4-SM
Wavelength Range nm 1260~1650nm
Test Wavelength nm 1310/1550 nm
Insertion Loss dB Typ. ≤0.8dB,Max.≤1.0 dB
Repeatability dB ≤ 0.02
Return Loss dB ≥ 50
Crosstalk dB ≥ 55
WDL dB ≤ 0.25
PDL dB ≤ 0.05
Optical Power mW ≤ 500
Switching Time ms ≤12 ms(adjacent channel)
Fiber Type um 9/125
Connector FC/PC
Monitoring Port RJ45 & RS-232

Working Power Supply

(Plug-type)

 V

AC:100～ 240 (50/60Hz)
Power Consumption W ＜ 10
Operating Temperature ℃ -10 ～ 60
Size mm 1U:483 x 230 x 45

More Picture

Triple Channel 500mW 1650nm 1x4 Fiber Optical Switch

Triple Channel 500mW 1650nm 1x4 Fiber Optical Switch
